Key Features and Benefits of the 1060 PRO
1060 PRO is Proudly Australian Made & Certified. The 1060 PRO is not just a laser engraver and cutter; it’s a gateway to precision and creativity. Designed for versatility, this 60W RF CO2 laser system excels in both engraving and cutting, handling a variety of materials from acrylics to leather with ease. Its 1000mm x 600mm working area is perfectly suited for a wide range of applications, offering ample space for your creative explorations.
Product Dimensions
L: 1160mm, W: 1530mm, H: 1060mm
Independent Airflow Control
Achieve unparalleled cutting and engraving quality with precise control over airflow, ensuring exceptional performance for projects of all sizes.
Precision Focus
Experience unparalleled precision with our state-of-the-art autofocus system, effortlessly adjusting the z-axis for optimal engraving and cutting depth.
Advanced Servo Motors
Our advanced servo motors ensure rapid, fluid movement along the X and Y axes, delivering faster processing times and impeccable accuracy.
Red Laser Pointer
The inline red laser pointer provides a clear, visible guide for precise engravings and cuts, enhancing accuracy and efficiency.
Safe Interlocked Door
Safety meets convenience with our interlocked doors, ensuring operational safety without compromising on accessibility and ease of use.
Dual-Zoned Air Extraction
This feature enables users to selectively extract air primarily from below the table during cutting operations and across the top of the material while engraving.

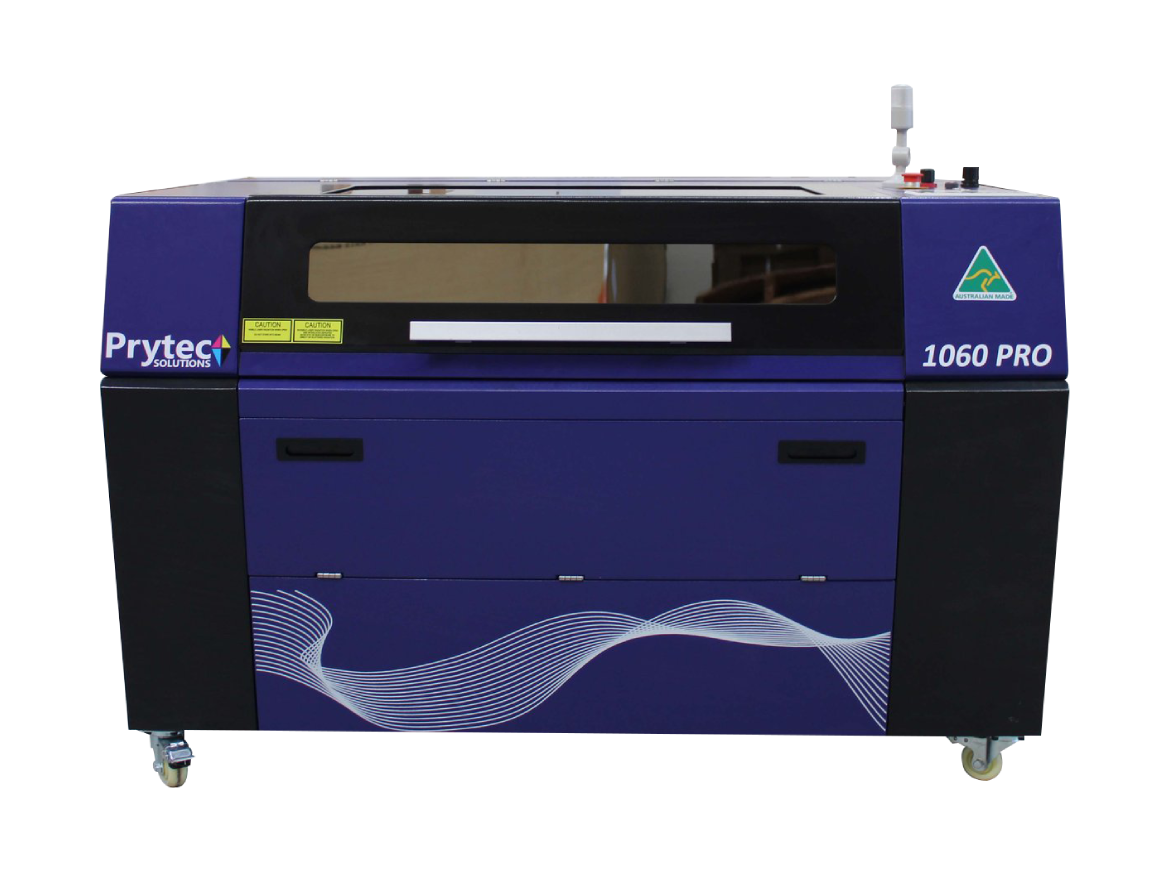

The 1060 PRO is a high-performance CO2 laser engraver and cutter designed for precision cutting and etching of various materials.
Its powerful 60W RF delivers exceptional cutting and engraving results. With a large working area of 1000mm x 600mm, the 1060 PRO is ideal for medium to large scale engraving and cutting jobs.
Get to Know Your Lasers
Prytec CO2 Laser Comparison
PLS-1060
| The perfect performance addition your sign and graphics shop. | |
| Laser Tube | 100W Glass Tube |
| Focusing | On nozzle Autofocus mechanism |
| Engraving Speeds | Up to 1000mm/sec |
| Motors & Drivers | 150W AC servo motor |
| Air Assist | Software controlled air assist |
| Air Extraction | Standard single point extraction |
| Optional Accessories | Camera Smoke Detector Rotary Honeycomb |
PLS-1060PRO
| The perfect performance enhancement for your business, proudly Australian-made | |
| Laser Tube | RF Metal Tube 60W |
| Focusing | On nozzle Autofocus mechanism |
| Engraving Speeds | Up to 3000mm/sec |
| Motors & Drivers | 400W Servo Motors |
| Air Assist | Independent Airflow control regulators for engrave and cut. Provides the ability to fine tune airflow to independently achieve optimal cutting and engraving quality |
| Air Extraction | Zoned dual extraction – table and top. Provides the ability to extract air primarily from below the table when cutting or across the top of the material when engraving.(Software selectable) |
| Optional Accessories | Camera Smoke Detector Rotary |
Why Choose the 1060 PRO
Materials Compatibility
Discover the vast capabilities of the 1060 PRO. From intricate fabrics to robust materials like anodized aluminium (engraving), this versatile machine handles it all with ease. Whether you need precision or power, the 1060 PRO delivers. Unsure if it’s right for you? Reach out for personalised advice and see how it can bring your creative ideas to life.
Woods
Paper
Metal (Engraving)
Acrylic
2 Ply ABS
Leather
Anodised Aluminium
(Engraving)
*Talk to us today to find out if the material you are working with fits this machine
Versatile Applications with 1060 PRO
Experience unparalleled productivity and precision with our first Australian-made CO2 laser cutter/engraver. Equipped with RF metal CO2 laser tubes for enhanced performance, our innovative design and exclusive features ensure faster, smoother engraving and cutting.
Get in Touch with the Laser Experts
Custom built laser systems, Have questions or need a custom solution? Our team is ready to assist you. Connect with us today to explore how Prytec Solutions can revolutionise your business with advanced laser technology.
